Our Products

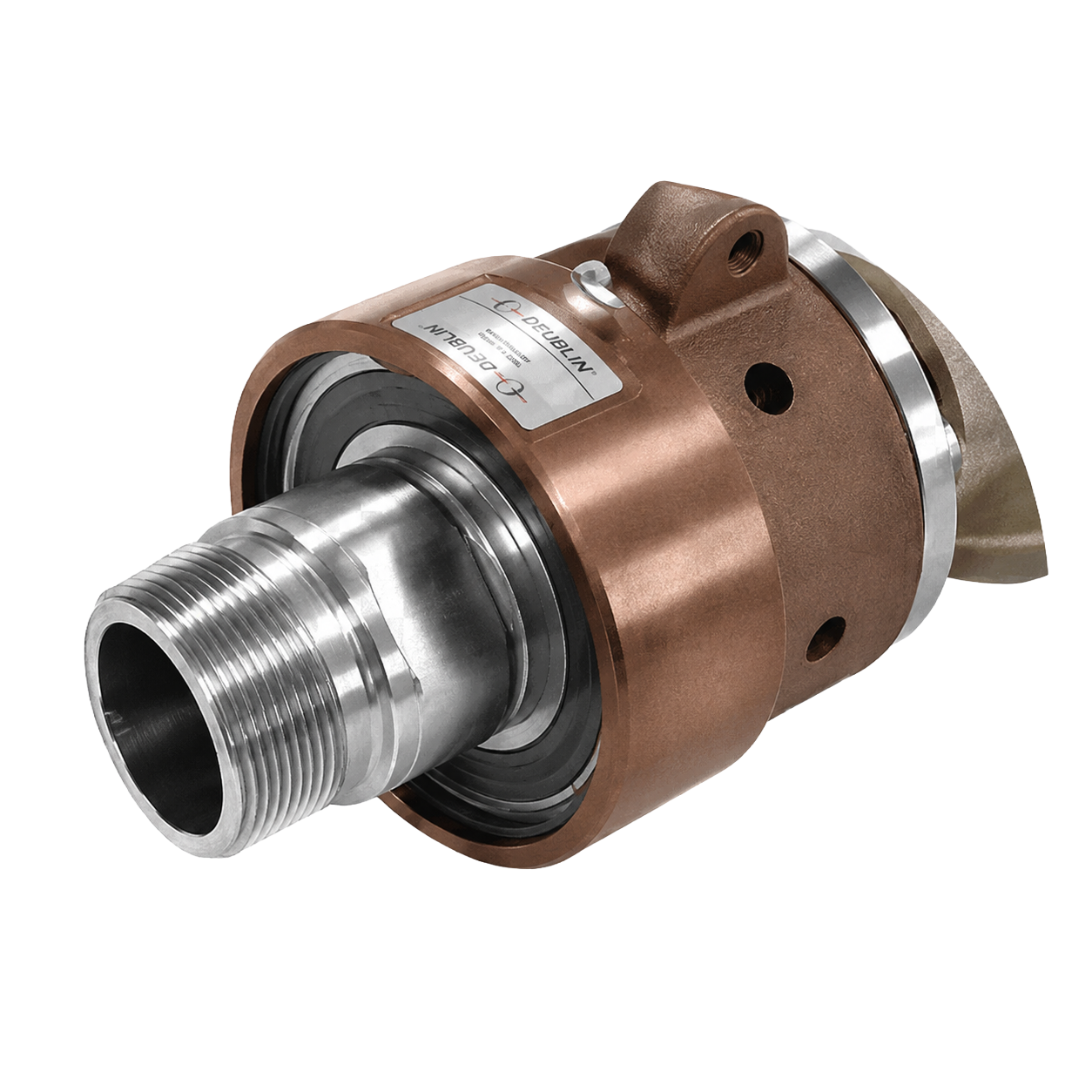

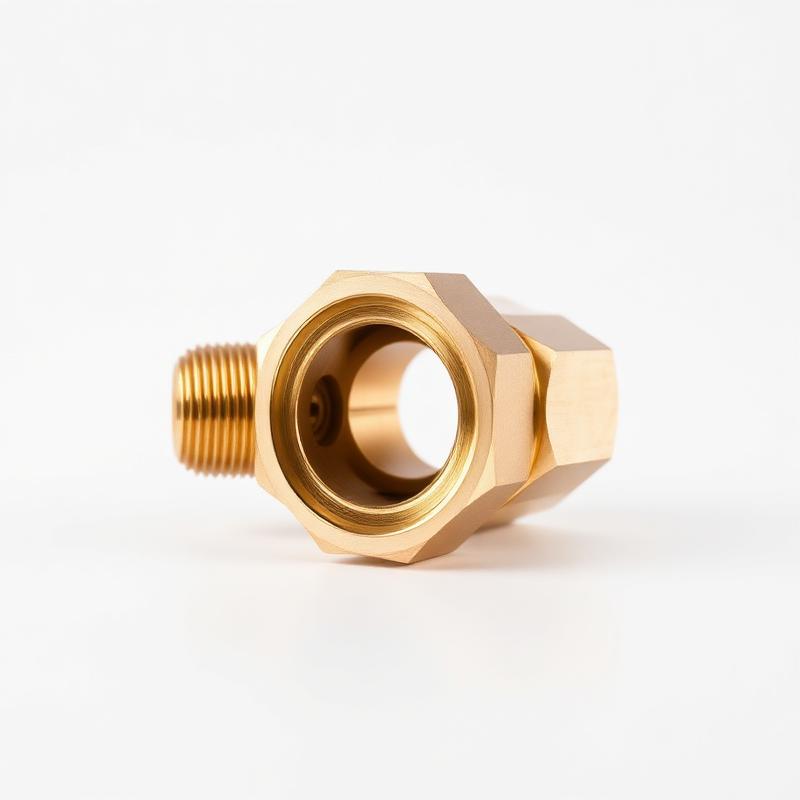

Rotor Unions

The Rotor Unions is a rotary union that transfers fluid or air between stationary piping and rotating equipment listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

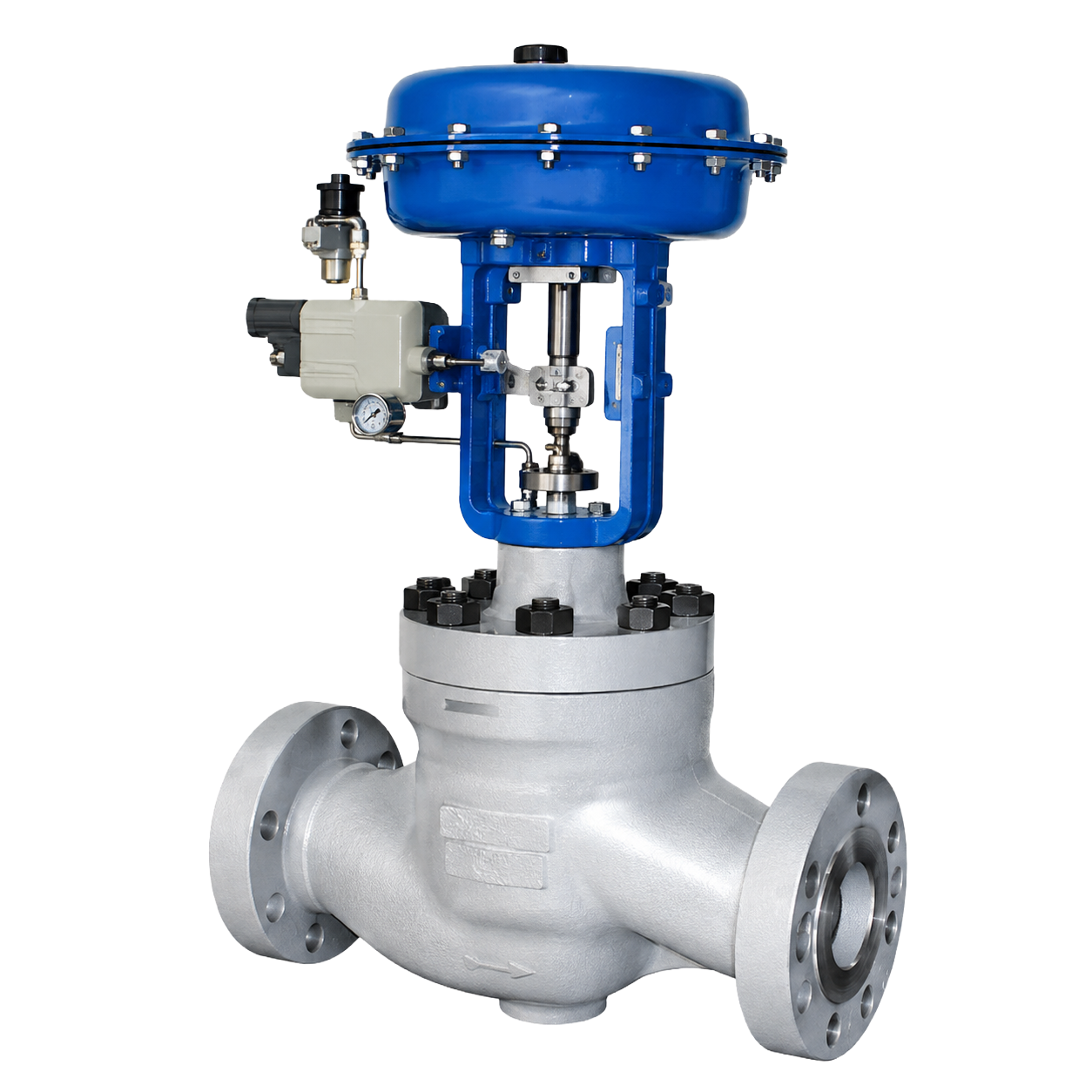

Control Valves

The Control Valves is a valve assembly used to control flow, pressure or temperature under a signal listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

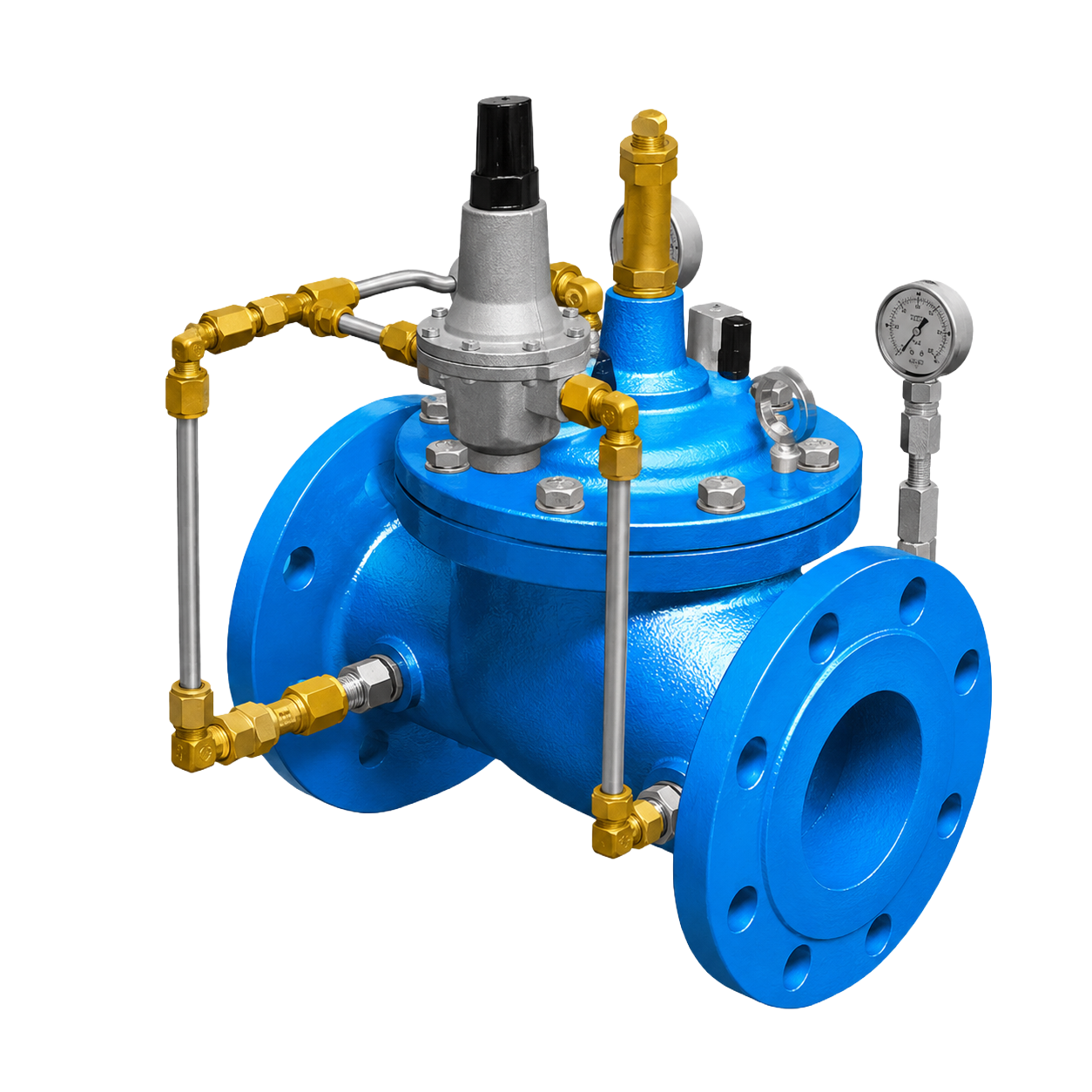

Pressure Reduced Valves

The Pressure Reduced Valves is a pressure reducing valve family used to lower upstream pressure to a controlled outlet pressure listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

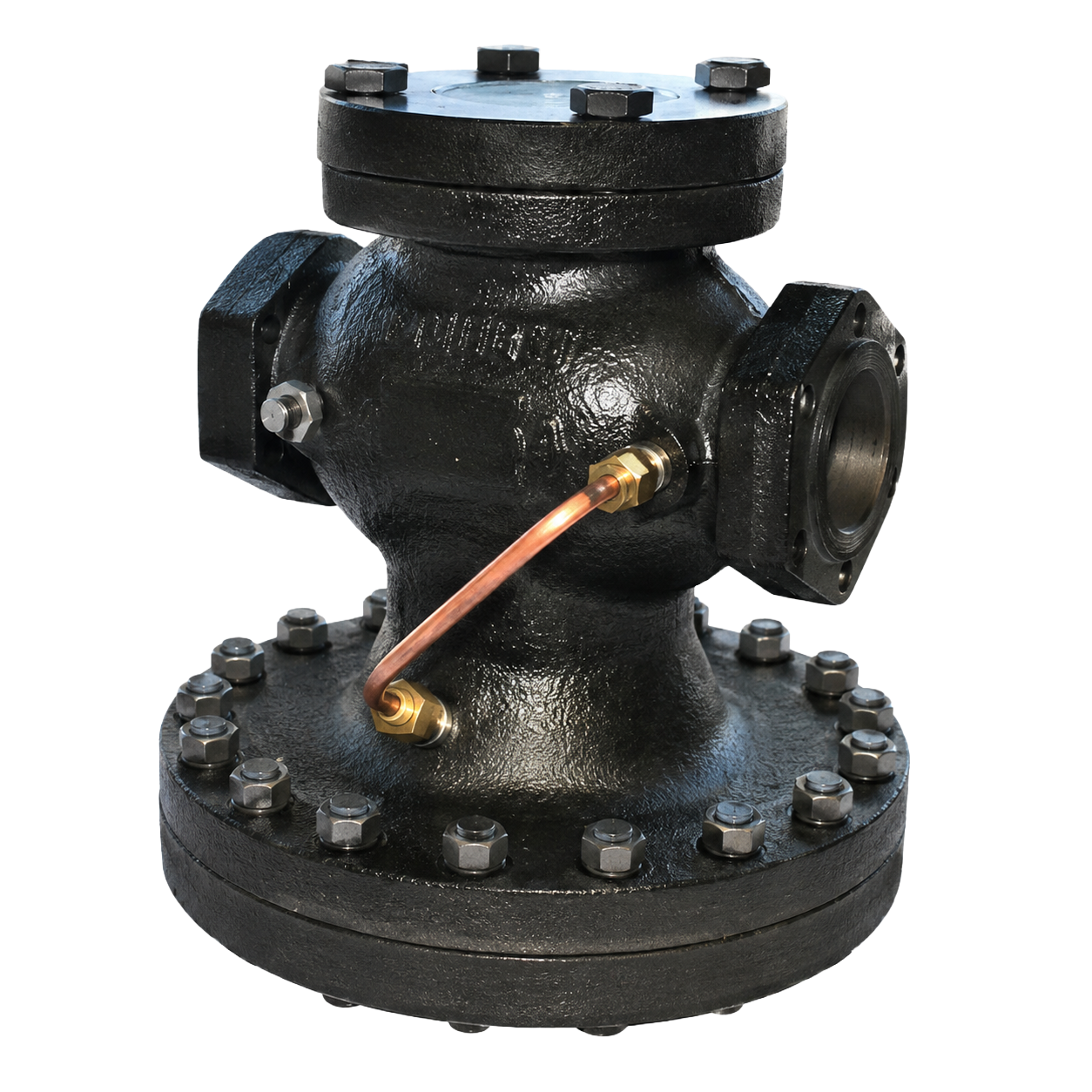

Steam Regulating Valves

The Steam Regulating Valves is a steam service regulating valve for controlling steam pressure or flow listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

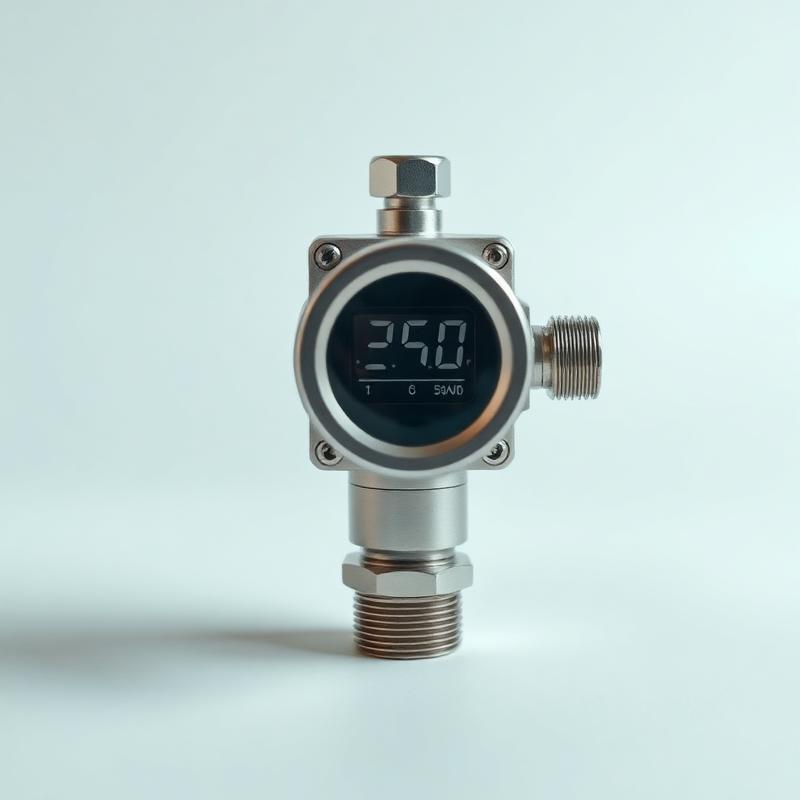

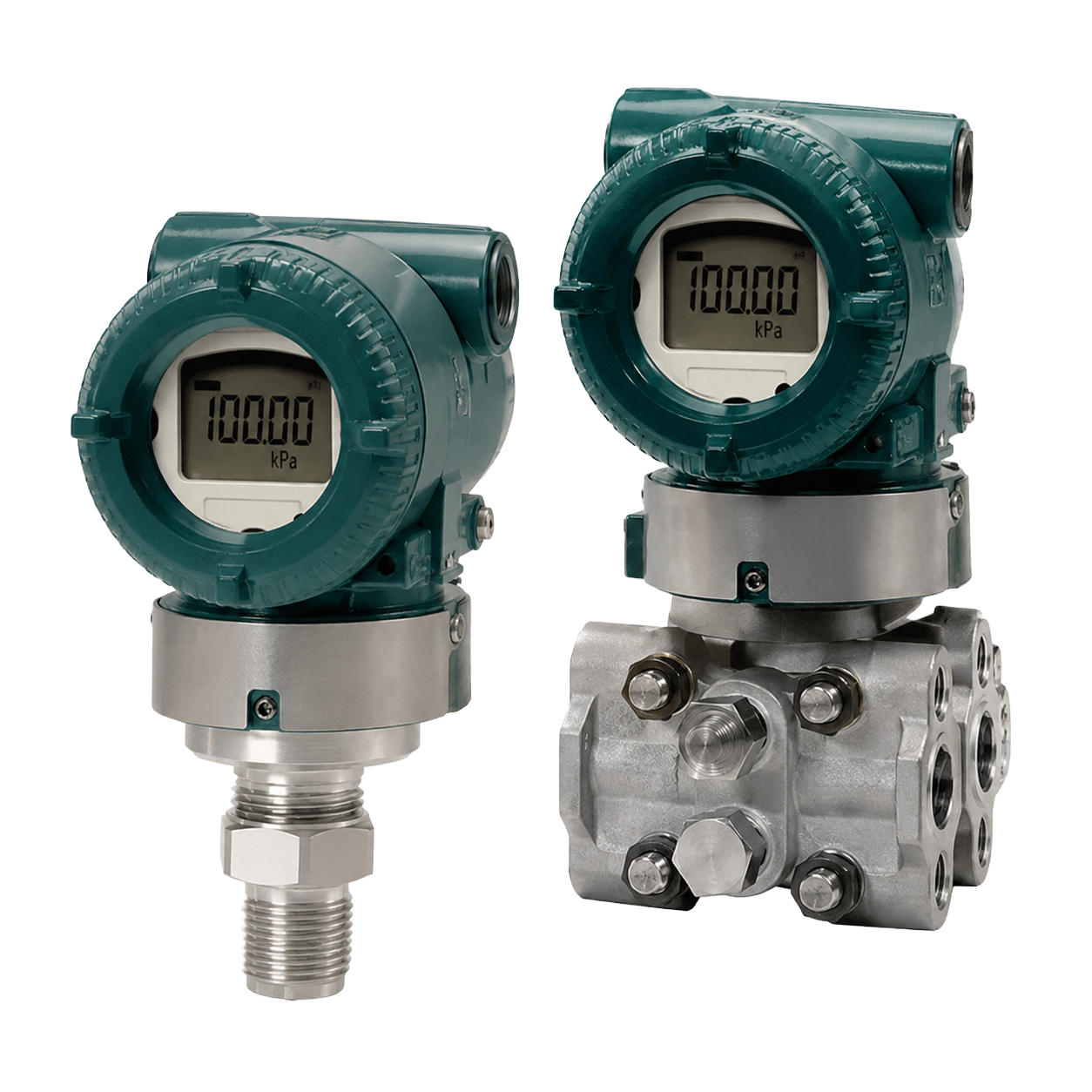

Pressure Transmitters

The Pressure Transmitters is an instrument that converts pressure into an electrical signal for monitoring or control listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

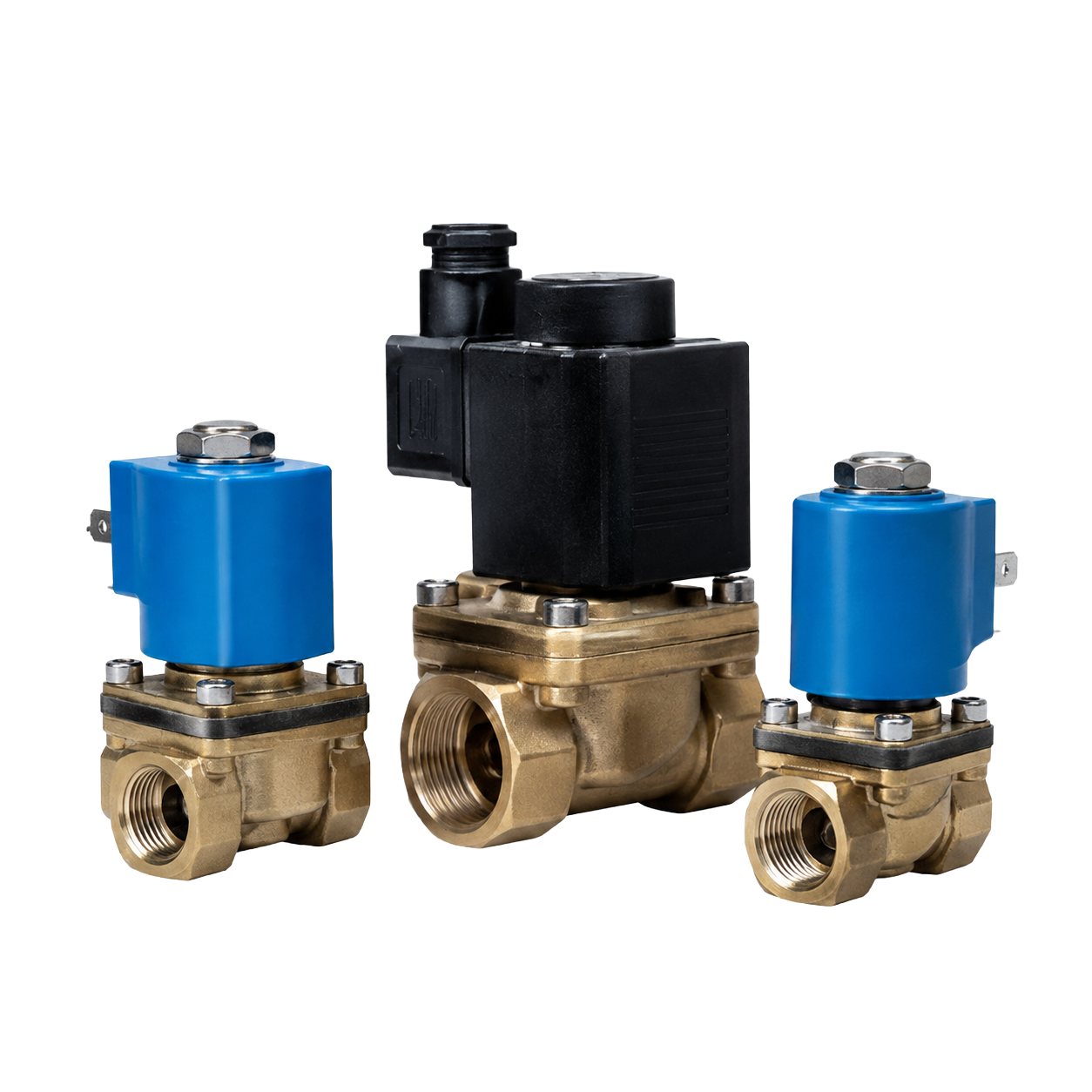

Solenoid Valves

The Solenoid Valves is an electrically operated valves for automatic opening and closing listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

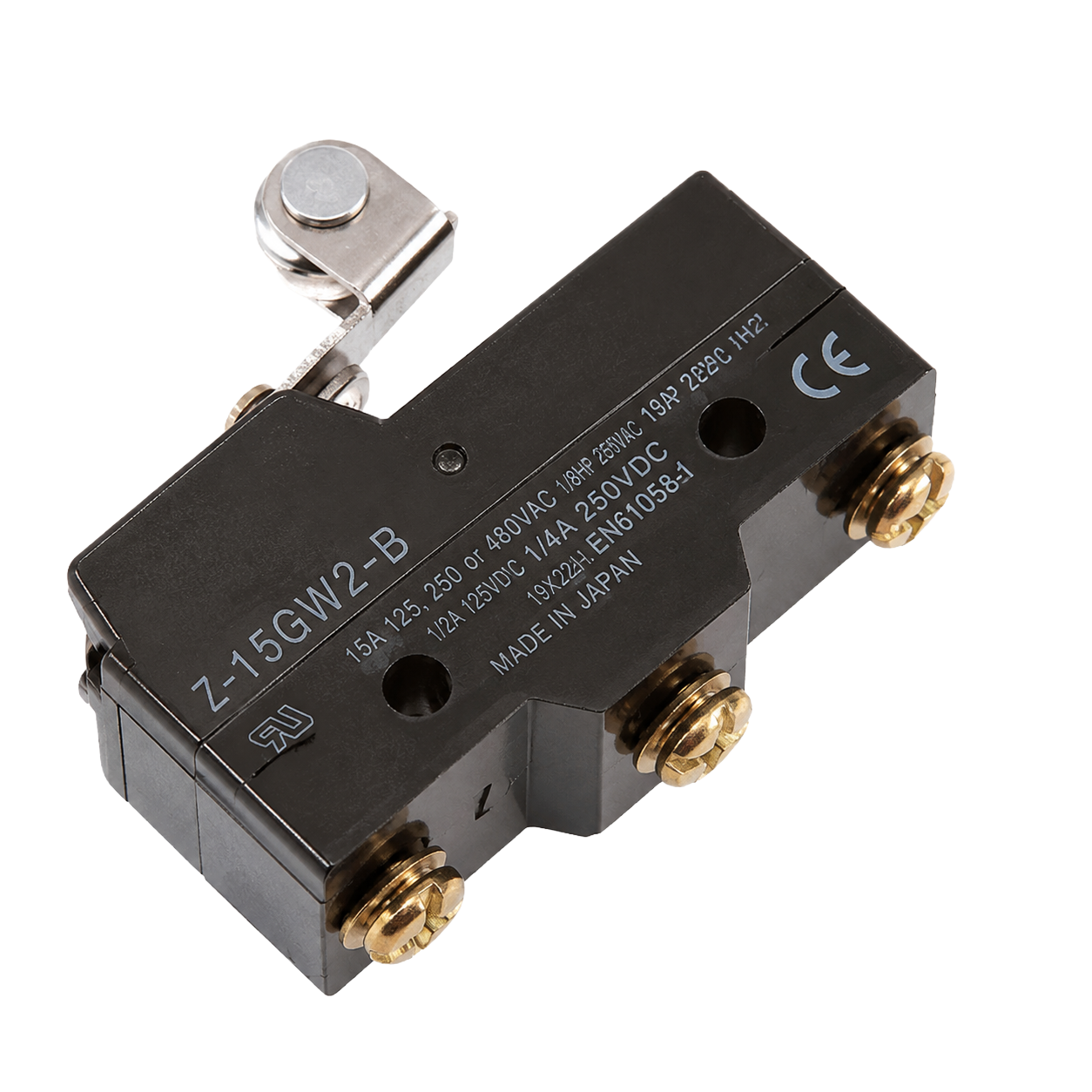

Micro Switches

The Micro Switches is a small snap-action electrical switch used for position or limit detection listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

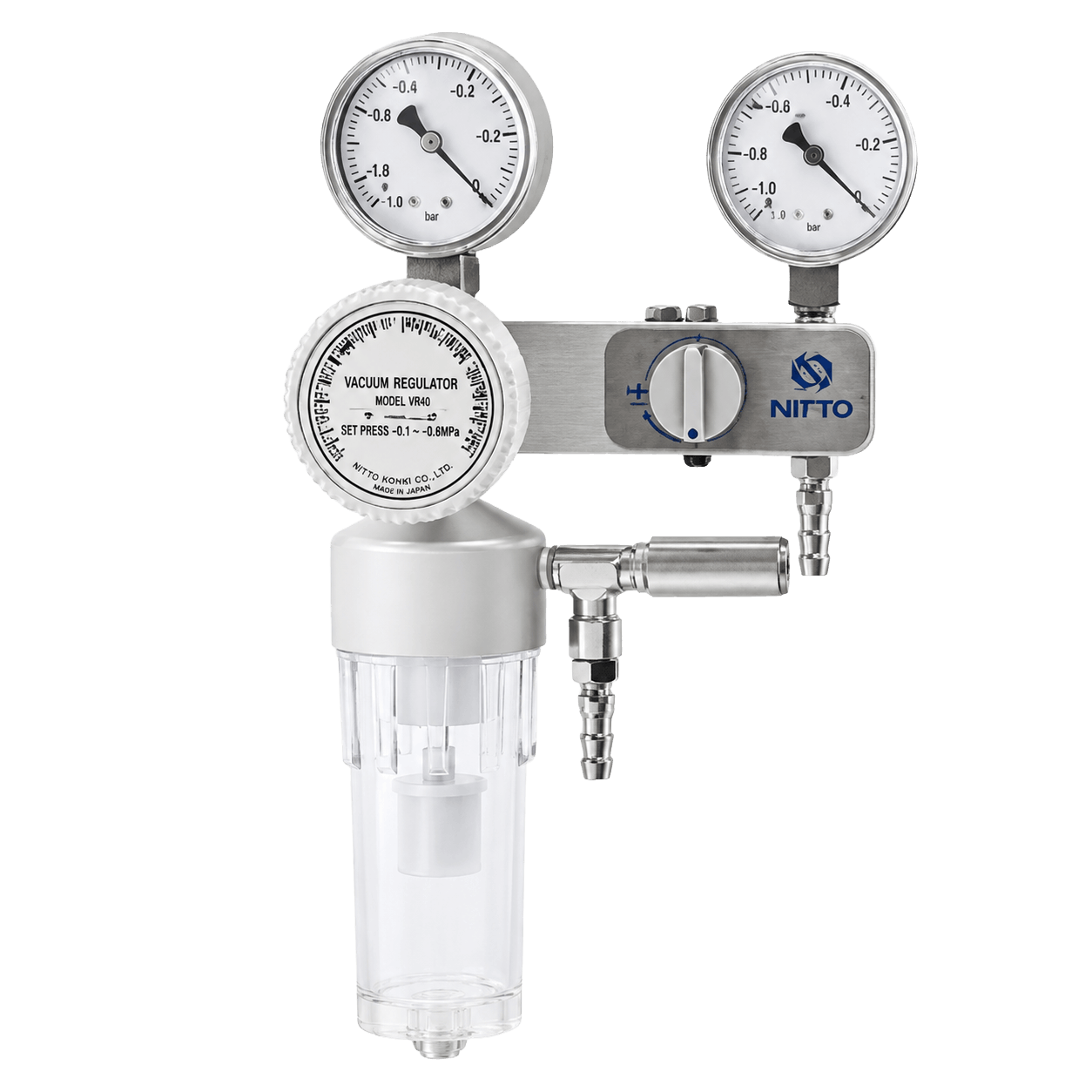

Vacuum Control Valves

The Vacuum Control Valves is a valve used to control vacuum flow or vacuum level listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

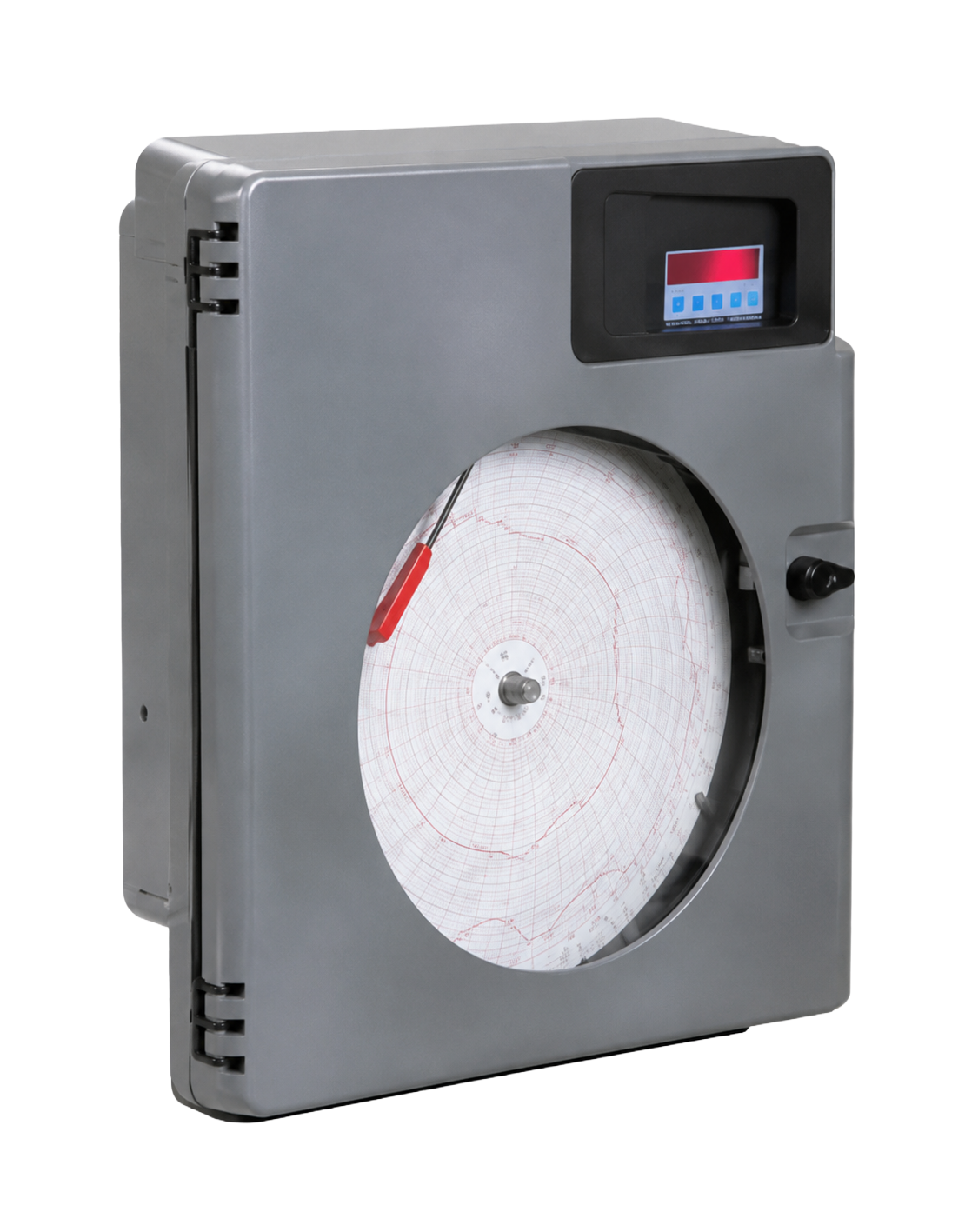

Chart Readers

The Chart Readers is a recording or reading device used with chart-based process instruments listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

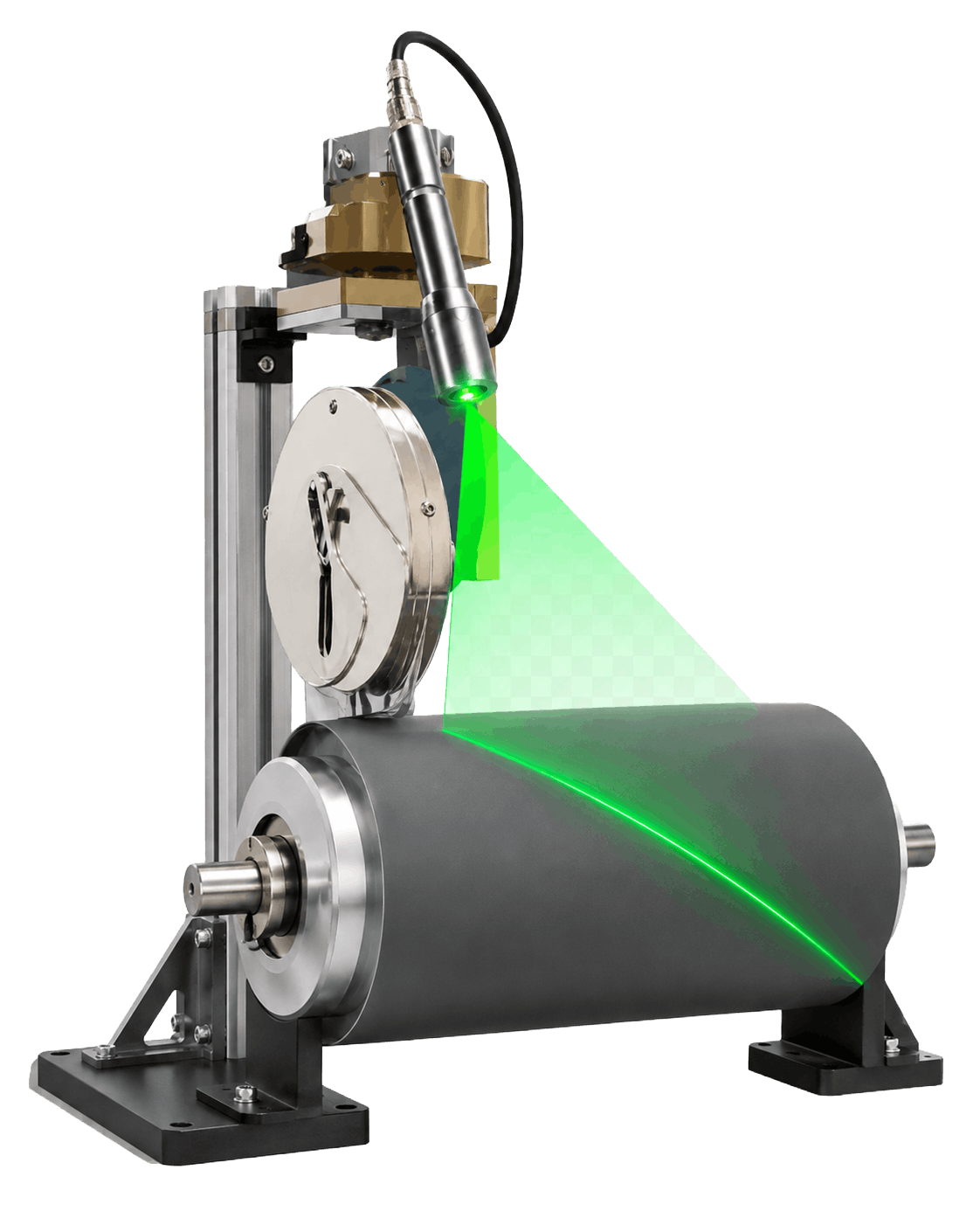

Line Lasers

The Line Lasers is a laser alignment or marking device producing a visible line listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

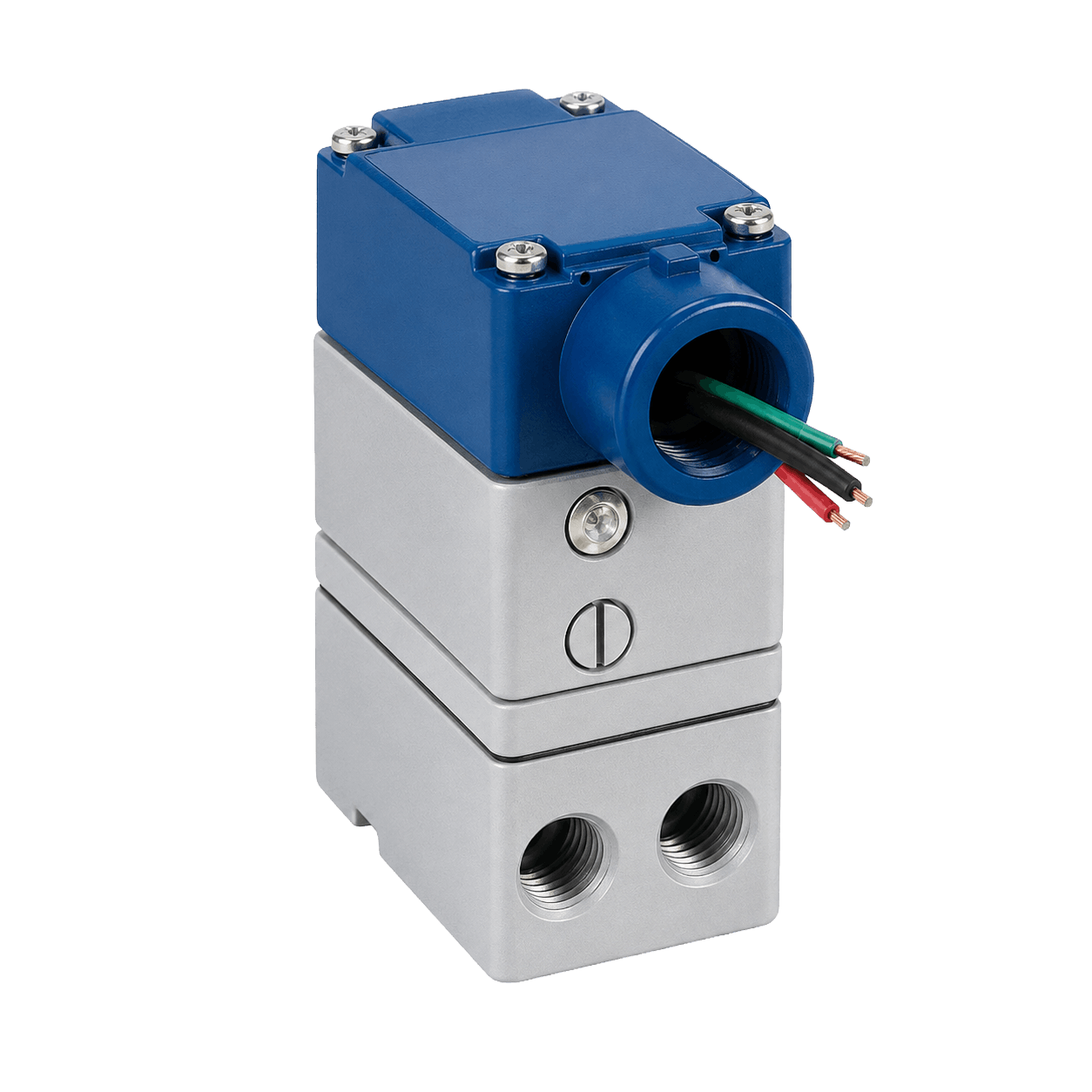

I to P Converters

The I to P Converters is a current-to-pressure converter that changes a 4-20 mA electrical signal into pneumatic pressure listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

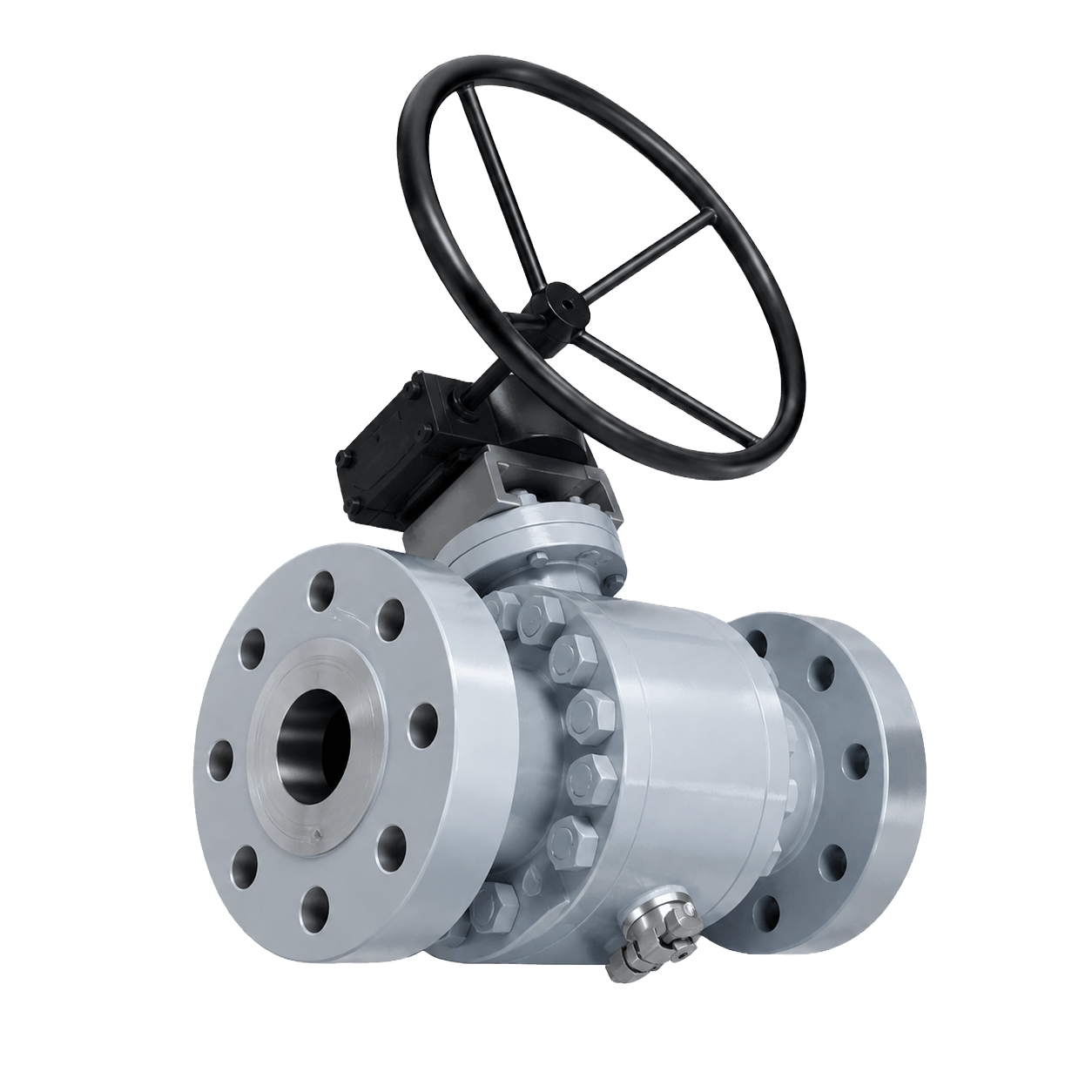

Ball Valves

The Ball Valves is a quarter-turn isolation valve with a bored ball inside the body listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

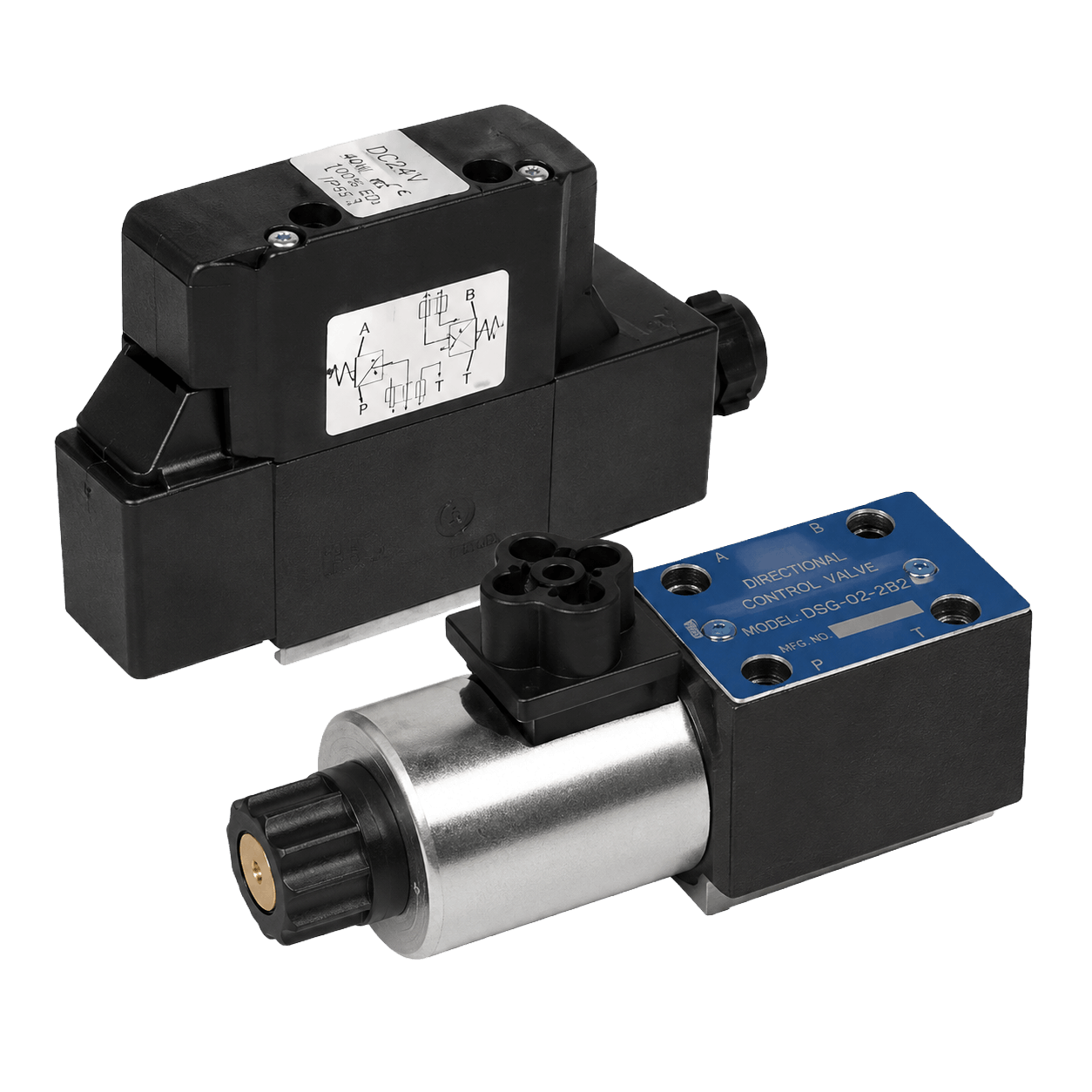

Direction Control Valves

The Direction Control Valves is a valve that directs compressed air or fluid to different actuator ports listed under the Engineering Items Supplier range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

Ball Valve Wafer Type

The Ball Valve Wafer Type is a compact automated isolation valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model WTB
• Wafer type blow-out proof stem ball valve with floating ball up to 2 inches
• Single acting spring return or double acting actuator
• Size range 1 inch to 4 inches

Flush Bottom Pneumatic Actuator Operated Flange End Valve

The Flush Bottom Pneumatic Actuator Operated Flange End Valve is an actuated flush-bottom valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model FTB
• Flush bottom type valve
• Single or double acting actuator
• Size range 1 inch to 4 inches

Butterfly Valve With Pneumatic Rotary Actuator

The Butterfly Valve With Pneumatic Rotary Actuator is a pneumatically actuated butterfly valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model Eco-Tech/TECO
• Single or double acting actuator
• Size range 1.1/2 inches to 24 inches
• Body options cast iron, ductile iron, CF8 or CF8M

Double Flange Butterfly Valve With Pneumatic Rotary Actuator

The Double Flange Butterfly Valve With Pneumatic Rotary Actuator is a double flanged pneumatically actuated butterfly valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model DFW-ECO
• Single or double acting actuator
• Size range 6 inches to 40 inches
• Valve body C.I., WCB, CF8 or CF8M

Spherical Disc Valve With Pneumatic Rotary Actuator

The Spherical Disc Valve With Pneumatic Rotary Actuator is an automated spherical disc valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model SDV
• Single or double acting actuator
• Size range 1.1/2 inches to 36 inches
• Valve body CF8, CF8M, C.I. or WCB

Spherical Disc Valve Metal To Metal Seating

The Spherical Disc Valve Metal To Metal Seating is a metal seated spherical disc valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model SMT
• Single or double acting actuator
• Size range 2 inches to 12 inches
• Valve body WCB, CF8 or CF8M

Off-Set Disc Butterfly Valve Wafer Type

The Off-Set Disc Butterfly Valve Wafer Type is an offset disc butterfly valve with wafer connection listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model OBFV
• Single or double acting actuator
• Size range 4 inches to 24 inches
• Valve body WCB, CF8 or CF8M

Off-Set Disc Butterfly Valve Double Flange

The Off-Set Disc Butterfly Valve Double Flange is an offset disc butterfly valve with double flanges listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model OBFV
• Single or double acting actuator
• Size range 4 inches to 24 inches
• Valve body WCB, CF8 or CF8M

SS Barrel Heavy Duty Pneumatic Cylinder

The SS Barrel Heavy Duty Pneumatic Cylinder is a heavy duty pneumatic cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore 75 mm to 450 mm
• Stroke 25 mm to 1000 mm
• Stainless steel barrel
• Cast iron end cover

Aluminum Barrel Heavy Duty Cylinder

The Aluminum Barrel Heavy Duty Cylinder is an aluminum pneumatic cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore 25 mm to 250 mm
• Stroke 25 mm to 1000 mm
• Aluminum hard anodized barrel
• Aluminum pressure die cast end cover

ISO 6431 Deluxe Air Cylinder

The ISO 6431 Deluxe Air Cylinder is an ISO profile pneumatic cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore 32 mm to 100 mm
• Stroke 25 mm to 1000 mm
• Aluminum profile barrel
• Aluminum die cast end cover

ISO 6431 Economy Air Cylinder

The ISO 6431 Economy Air Cylinder is an economy air cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore 32 mm to 350 mm
• Stroke 25 mm to 1000 mm
• Aluminum round barrel
• Aluminum die cast end cover

Short Stroke Air Cylinder

The Short Stroke Air Cylinder is a compact short stroke cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore 25 mm to 100 mm
• Stroke 25 mm to 100 mm
• Aluminum barrel
• Polyurethane seals

ISO-6432 Round Body Cylinder

The ISO-6432 Round Body Cylinder is a round body pneumatic cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore 12 mm to 40 mm
• Stroke 25 mm to 600 mm
• Aluminum barrel
• Polyurethane seals

Power Cylinder With Adjusting Stroke

The Power Cylinder With Adjusting Stroke is an adjustable stroke pneumatic power cylinder listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Wide range of sizes and strokes
• Trunnion mounting or end mounting option
• Easy reversal of action
• Linear or special characterization can be available

Mounting For Cylinder

The Mounting For Cylinder is a pneumatic cylinder mounting accessories listed under the Pneumatic Cylinders range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Bore size support 12 mm to 450 mm
• Types include eye rod, fork, center lug, pivot, center trunnion, front flange, clevis foot bracket, male clevis, female clevis, wall bracket and trunnion bracket

3 Pcs Design Ball Valve Handle & Gear Operated

The 3 Pcs Design Ball Valve Handle & Gear Operated is a manual or gear operated three-piece ball valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model BMS-HD-SD/BMS-HD-FD
• Size 1/2 inch to 4 inches
• MOC WCB, CF8 or CF8M
• Three-piece ball valve design

2 Pcs Design VGO Ball Valve Handle And Gear Operated

The 2 Pcs Design VGO Ball Valve Handle And Gear Operated is a manual or gear operated ball valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model BMS-HD-SD/BMS-HD-FD
• Size 1/2 inch to 4 inches
• MOC WCB, CF8 or CF8M
• Catalogue shows ball valve as three-piece design

Wafer Type Ball Valve Handle Operated

The Wafer Type Ball Valve Handle Operated is a wafer type manual ball valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model WTB-HD
• Size 1 inch to 4 inches
• MOC WCB, CF8 or CF8M
• Pressure 10 kg/cm²

Jacketed Ball Valve Hand Operated

The Jacketed Ball Valve Hand Operated is a jacketed manual ball valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model KAG-HD
• Size 1/2 inch to 4 inches
• MOC WCB, CF8 or CF8M
• Pressure 10 kg/cm²

UPVC Ball Valve Handle Operated

The UPVC Ball Valve Handle Operated is an UPVC manual ball valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model BMW-UPVC-SD
• Size 1/2 inch to 4 inches
• MOC UPVC
• Pressure up to 7 kg/cm²

Spherical Disc Valve Handle & Gear Operated

The Spherical Disc Valve Handle & Gear Operated is a manual or gear operated spherical disc valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model SDV
• Size 1.1/2 inches to 36 inches
• MOC WCB, CF8 or CF8M
• Pressure ANSI 150 class

Aluminium Body Butterfly Valve Handle Operated

The Aluminium Body Butterfly Valve Handle Operated is an aluminum body manual butterfly valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model BFV-ALL
• Size 1.1/2 inches to 4 inches
• Aluminum pressure die cast body
• CF8M disc

UPVC Butterfly Valve Handle Operated

The UPVC Butterfly Valve Handle Operated is an UPVC manual butterfly valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model ECO-UPVC
• Size 2 inches to 8 inches
• MOC UPVC
• Pressure up to 7 kg/cm²

Spare Pneumatic Diaphragm Actuator

The Spare Pneumatic Diaphragm Actuator is a spare pneumatic diaphragm actuator listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Diaphragm cover sheet metal pressing
• NBR diaphragm with nylon inserted
• Yoke C.I., I.C. or WCB
• Spring sheet

2/2 & 3/2 Way Pneumatic Diaphragm Operated Control Valve

The 2/2 & 3/2 Way Pneumatic Diaphragm Operated Control Valve is a pneumatic diaphragm operated control valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model CKD
• Spring return type heavy pneumatic diaphragm actuator
• Normally closed or open
• Size 1/2 inch to 12 inches

2/2 & 3/2 Way Pneumatic Diaphragm Operated Control Valve

The 2/2 & 3/2 Way Pneumatic Diaphragm Operated Control Valve is a pneumatic diaphragm operated control valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model CND
• Spring return type heavy pneumatic diaphragm actuator
• Normally closed or open
• Size 1/2 inch to 12 inches

ISO Pneumatic Cylinder Operated Knife Gate & Pulp Valve

The ISO Pneumatic Cylinder Operated Knife Gate & Pulp Valve is a pneumatic cylinder operated knife gate valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Normally closed/open
• Single or double acting pneumatic cylinder actuation
• Size range 1.1/2 inches to 24 inches
• Body stainless steel or cast iron

2/2 Way Pneumatic Angle Type On/Off Control Valve

The 2/2 Way Pneumatic Angle Type On/Off Control Valve is a pneumatic angle seat on/off valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model SRT/SRV/ALS/ALF
• Normally closed/open
• Size 1/2 inch to 4 inches
• Body CFM, CFBM or CF3M

3/2-2/2 Way Pneumatic Cylinder Operated Control Valve

The 3/2-2/2 Way Pneumatic Cylinder Operated Control Valve is a pneumatic cylinder operated directional control valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model 3LCS
• Size range 1/2 inch to 4 inches
• Body CF8, CF8M or CF3M
• Spring steel IS 4454 Gr. II

2 Way Pneumatic Cylinder Operated Drain Valve

The 2 Way Pneumatic Cylinder Operated Drain Valve is a pneumatic drain valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model EDV
• Actuator stainless steel AISI 304 deep drawn
• Size 2.1/2 inches to 4 inches
• Spring steel IS 4454 Gr. II

2 Way Pneumatic Cylinder Operated Globe Type GKS/GKF Control Valve

The 2 Way Pneumatic Cylinder Operated Globe Type GKS/GKF Control Valve is a pneumatic globe type control valve listed under the Valve Automation range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model GKS/GKF
• Actuator stainless steel AISI 304 deep drawn
• Size 1/2 inch to 4 inches
• Pressure up to 10 bar

Pressure Reducing Valve

The Pressure Reducing Valve is a pressure reducing valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model PRV/PCR
• Size 1/2 inch to 6 inches
• Body SS 304 or SS 316
• Pressure adjustment ranges 1-6 kgf/cm, 4-10 kgf/cm and 20-35 kgf/cm

Silent Safety Valve

The Silent Safety Valve is a safety relief valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model PLS/PLF
• Size 1/2 inch to 4 inches
• MOC WCB, CF8, CF8M or CF3M
• Pressure ranges 0-10 kg/cm², 7-20 kg/cm² and 20-30 kg/cm²

Cast Iron Flanged End Pressure Reducing Valve

The Cast Iron Flanged End Pressure Reducing Valve is a cast iron flanged pressure reducing valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model DMS/DMF
• Size 2 inches to 4 inches
• MOC cast iron
• Pressure 1-5 kg/cm² or 3-8 kg/cm²

Pilot Operated Drum Type Pressure Reducing Valve

The Pilot Operated Drum Type Pressure Reducing Valve is a pilot operated pressure reducing valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model DPF
• Size 2 inches to 24 inches
• MOC C.I., WCB, CF8 or CF8M
• Pressure ranges 1-6 kg/cm² and 4-10 kg/cm²

Pilot Operated Drum Type Pressure Relief Valve

The Pilot Operated Drum Type Pressure Relief Valve is a pilot operated pressure relief valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model DRF
• Size 2 inches to 24 inches
• MOC C.I., WCB, CF8 or CF8M
• Pressure ranges 1-6 kg/cm² and 4-10 kg/cm²

Drum Type Float Valve

The Drum Type Float Valve is a float operated valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model DDF
• Size 2 inches to 4 inches
• MOC C.I., WCB, CF8 or CF8M
• Pressure 0-10 kg/cm²

Pharma Diaphragm Valve

The Pharma Diaphragm Valve is a pharmaceutical diaphragm valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model PDV
• Size 1/2 inch to 3 inches
• MOC CF8M
• Pressure 8 kg/cm²

Disc Check Valve DVC

The Disc Check Valve DVC is a disc check valve listed under the Manual Intelligent Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model DNRV/DCV
• Size range 1/2 inch to 12 inches
• Body CF8 or CF8M
• Disc SS 304 or SS 316

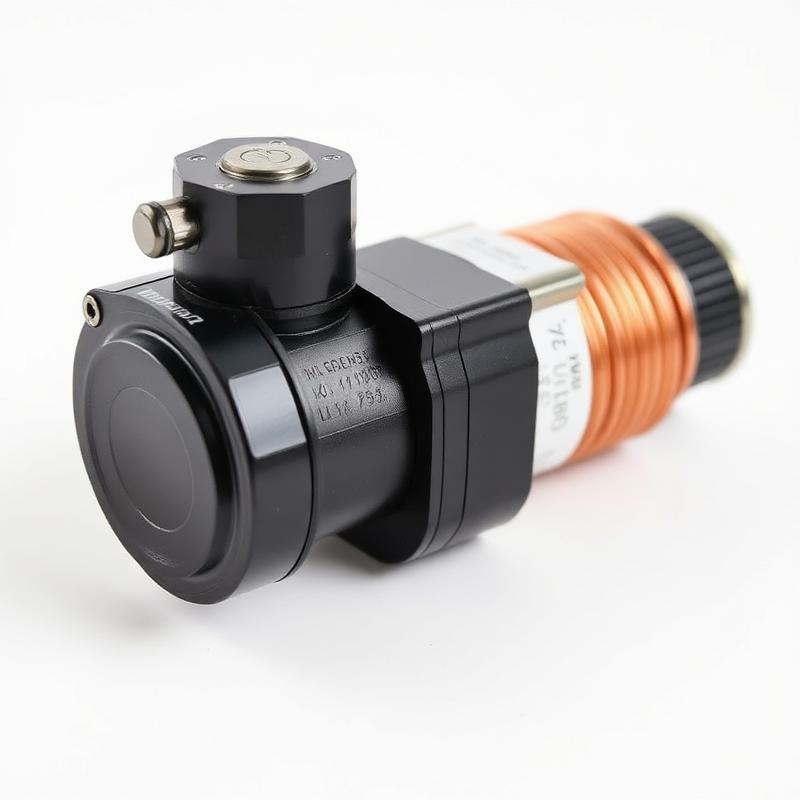

2/2-3/2 Way Direct Acting Solenoid Valve

The 2/2-3/2 Way Direct Acting Solenoid Valve is a direct acting solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model BSD
• Normally closed/open
• Size range 1/4 inch, 3/8 inch and 1/2 inch
• Body brass, forged steel or aluminum

2/2 Way Diaphragm Type Solenoid Valve

The 2/2 Way Diaphragm Type Solenoid Valve is a diaphragm type solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model ISD
• Diaphragm type internal pilot operated actuator
• Normally closed/open
• Size range 1/4 inch to 6 inches

2 Way Piston Type Steam Solenoid Valve

The 2 Way Piston Type Steam Solenoid Valve is a piston type steam solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model HVS
• 2 way piston type internal pilot operation
• Normally closed/open
• Size 1/2 inch to 16 inches

Low Pressure Solenoid Valve

The Low Pressure Solenoid Valve is a low pressure solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model GSD
• Size range 3/8 inch to 6 inches
• Body CF8
• Diaphragm neoprene, nitrile or Teflon

Dust Collector Solenoid Valve Pulse Valve

The Dust Collector Solenoid Valve Pulse Valve is a pulse jet solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model ASDA
• Size range 1/2 inch to 3 inches
• Aluminum die cast body
• Diaphragm neoprene, nitrile or PU

2 Way Direct Operated Midget Type Solenoid Valve

The 2 Way Direct Operated Midget Type Solenoid Valve is a compact midget solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model FDM 200
• Size 1/8 inch to 1/4 inch BSP/NPT
• Medium air, water, gas, L.D. oil
• Port size 1 mm to 4 mm

2 Way Direct Diaphragm Type Solenoid Valve

The 2 Way Direct Diaphragm Type Solenoid Valve is a direct diaphragm solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model FSD 200
• Size 1/8 inch to 2 inches BSP/NPT
• Medium air, water, gas and L.D. oil
• Full port

2 Way Servo Operated Solenoid Valve

The 2 Way Servo Operated Solenoid Valve is a servo operated solenoid valve listed under the Solenoid Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Model FS
• Size 1 inch to 2 inches BSP/NPT
• Medium air, water, steam and L.D. oil
• Full port

Male Connector

The Male Connector is a push-in male pneumatic connector listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue code families include APC4-M5, APC4-01, APC4-02, APC6-M5, APC6-01, APC6-02, APC6-03, APC6-04, APC4-M6, APC8-01, APC8-02, APC8-03, APC8-04, APC10-01, APC10-03, APC10-04, APC12-01, APC12-02, APC12-03, APC12-04, APC14-03, APC14-04, APC16-03 and APC16-04

Male Elbow

The Male Elbow is a push-in male elbow fitting listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue code families include APL4-M5, APL4-01, APL4-02, APL6-M5, APL6-01, APL6-02, APL6-03, APL6-04, APL8-M5, APL8-01, APL8-02, APL8-03, APL8-04, APL10-01, APL10-03, APL10-04, APL6-M6, APL12-01, APL12-02, APL12-03, APL12-04, APL14-03, APL14-04, APL16-03 and APL16-04

Male Tee

The Male Tee is a push-in male tee fitting listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue code families include APB4-M5, APB4-01, APB4-02, APB6-M5, APB6-01, APB6-02, APB6-03, APB6-04, APB4-M6, APB8-01, APB8-02, APB8-03, APB8-04, APB10-01, APB10-03, APB10-04, APB6-M6, APB12-01, APB12-02, APB12-03, APB12-04, APB14-01, APB14-02 and APB16-03

Flow Control Valve

The Flow Control Valve is a push-in pneumatic flow control valve listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue code families include ASC4-M5, ASC4-01, ASC4-02, ASC6-M5, ASC6-01, ASC6-02, ASC6-03, ASC6-M6, ASC6-04, ASC8-01, ASC8-02, ASC8-03, ASC8-04, ASC10-01, ASC10-02, APB12-01, APB12-02, APB12-03, APB12-04, APB14-01, APB14-02 and APB16-03

Equal Tee

The Equal Tee is an equal tee push-in fitting listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue codes shown include APE-4, APE-6, APE-8, APE-10, APE-12, APE-14 and APE-16

Equal Elbow

The Equal Elbow is an equal elbow push-in fitting listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue codes shown include APV-4, APV-6, APV-8, APV-10, APV-12, APV-14 and APV-16

Straight Union

The Straight Union is a straight union push-in fitting listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue codes shown include APU-4, APU-6, APU-8, APU-10, APU-12, APU-14 and APU-16

Bulk Head

The Bulk Head is a bulkhead push-in fitting listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Catalogue codes shown include APM-4, APM-6, APM-8, APM-10, APM-12, APM-14 and APM-16

PU Tubes

The PU Tubes is a polyurethane pneumatic tubing listed under the Push In Fittings range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Size 4 mm, 6 mm, 8 mm, 9 mm, 10 mm, 12 mm, 14 mm and 16 mm
• Colors blue, yellow, black, red, green and transparent

Butterfly Valve

The Butterfly Valve is a quarter-turn disc valve used for shut-off and flow throttling in compact piping layouts listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Gate Valve

The Gate Valve is a linear motion valve that lifts a gate out of the flow path listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Globe Valve

The Globe Valve is a linear motion valve with a movable plug or disc for regulating flow listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Diaphragm Valve

The Diaphragm Valve is a valve that uses a flexible diaphragm to isolate fluid from the bonnet and actuator listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Control Valve

The Control Valve is a valve used to control process variables such as flow, pressure, temperature or level listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Ball Valve

The Ball Valve is a quarter-turn valve using a rotating ball with a bore through it listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Check Valve

The Check Valve is a non-return valve that allows flow in one direction and blocks reverse flow listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Thermostatic Valve

The Thermostatic Valve is a temperature-responsive valve used to regulate flow based on heat conditions listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Piston Valve

The Piston Valve is a valve design using a piston-style sealing element or actuator movement listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Pinch Valve

The Pinch Valve is a valve that pinches a flexible sleeve to stop or regulate flow listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Needle Valve

The Needle Valve is a fine-control valve with a slender needle-like stem listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Plug Valve

The Plug Valve is a quarter-turn valve with a cylindrical or tapered plug listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Relief Valve

The Relief Valve is a pressure protection valve that opens to discharge excess pressure listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Regulating Valve

The Regulating Valve is a valve used to maintain or adjust pressure, flow or other process conditions listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Rotary Valve

The Rotary Valve is a valve or feeder using rotary motion to control passage of material or fluid listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

Solenoid Valve

The Solenoid Valve is an electrically operated valve controlled by an electromagnetic coil listed under the Valve Types range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Shown in the valve-type reference image as one of the common industrial valve families

2 Way Ball Valve Electrical Actuator Operated

The 2 Way Ball Valve Electrical Actuator Operated is a motorized 2-way ball valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Single phase quarter turn actuator
• Size 1/2 inch to 4 inches screwed to BSP/NPT
• MOC WCB, SS304, SS316 or SS316L
• Replaceable seat PTFE or glass filled PTFE/CFT

2 Way / 4 Way / 5 Way Ball Valve Electrical Actuator Operated

The 2 Way / 4 Way / 5 Way Ball Valve Electrical Actuator Operated is a multiport motorized ball valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Single phase quarter turn actuator
• Size 1/2 inch to 4 inches screwed to BSP/NPT and 1/2 inch to 8 inches flanged end 150#/300#
• MOC WCB, SS304, SS316 or SS316L
• Replaceable seat PTFE or glass filled PTFE/CFT

PP/UPVC Ball Valve Electrical Actuator Operated

The PP/UPVC Ball Valve Electrical Actuator Operated is a plastic or lined motorized ball valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Single phase quarter turn actuator
• Size 1/2 inch to 4 inches screwed to BSP/NPT and 1/2 inch to 10 inches flanged
• MOC PP, UPVC, CPVC or PVDF lined
• Replaceable seat PTFE or glass filled PTFE/CFT

Wafer Type Butterfly Valve Electrical Actuator Operated

The Wafer Type Butterfly Valve Electrical Actuator Operated is a motorized wafer butterfly valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Single phase quarter turn actuator
• Size 1.1/2 inches to 72 inches
• MOC C.I., DI, WCB, SS304, SS316 or alloy steel/duplex
• Molded or replaceable seats including Nitrile, EPDM, PTFE and others

2 Way Ball Valve Electrical Actuator Operated

The 2 Way Ball Valve Electrical Actuator Operated is a three phase motorized 2-way ball valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Three phase quarter turn actuator
• Size 1/2 inch to 4 inches screwed to BSP/NPT
• MOC WCB, SS304, SS316 or SS316L
• Replaceable seat PTFE or glass filled PTFE/CFT

3 Way / 4 Way / 5 Way Ball Valve Electrical Actuator Operated

The 3 Way / 4 Way / 5 Way Ball Valve Electrical Actuator Operated is a three phase multiport motorized ball valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Three phase quarter turn actuator
• Size 1/2 inch to 4 inches screwed to BSP/NPT and 1/2 inch to 8 inches flanged end 150#/300#
• MOC WCB, SS304, SS316 or SS316L
• Replaceable seat PTFE or glass filled PTFE

Globe Valve Multi-Turn Electrical Actuator Operated

The Globe Valve Multi-Turn Electrical Actuator Operated is an electric multi-turn globe valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Three phase multi-turn actuator
• Size 1 inch to 16 inches
• Body/bonnet C.I., WCB, WC6, WC9, SS304, SS316, SS316L, alloy steel or duplex
• Trim/plug 13CR, 18CR, 8N/SS

Knife Gate Valve Multi-Turn Electrical Actuator Operated

The Knife Gate Valve Multi-Turn Electrical Actuator Operated is an electric multi-turn knife gate valve listed under the Motorized Valves range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Three phase multi-turn actuator
• Size 1 inch to 30 inches
• Body C.I., WCB, SS304, SS316 or alloy steel
• Knife plate C.I., WCB, SS304, SS316 or alloy steel

Solenoid Valve Namur Standard

The Solenoid Valve Namur Standard is a NAMUR standard solenoid valve accessory listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• 1/4 inch BSP
• All standard coil voltage
• Continuous duty
• Flame proof coil available on request

Clutch Type Rotary Worm Gear Actuator

The Clutch Type Rotary Worm Gear Actuator is a manual worm gear actuator listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• As per NAMUR standards
• High torque capacity and adjustable travel stops

Manual Over Ride

The Manual Over Ride is a manual override accessory listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Linear manual over-ride for manual operations

Position Indicator With Microswitch Box

The Position Indicator With Microswitch Box is a valve position indicator with switch box listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Flame proof with CMRI certificate
• From IIA, IIB and IIC categories

Filter + Regulator With Pressure Gauge

The Filter + Regulator With Pressure Gauge is an air preparation filter regulator listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Filter regulator unit with pressure gauge shown as an accessory for pneumatic systems

3/2 Way Direct Acting Solenoid Valve

The 3/2 Way Direct Acting Solenoid Valve is a 3/2 way direct acting solenoid valve listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• For linear control valve
• All standard coil voltage
• Continuous duty
• Flame proof coil available on request

Electro-Pneumatic Positioner Rotary / Linear

The Electro-Pneumatic Positioner Rotary / Linear is an electro-pneumatic valve positioner listed under the Accessories range. It is used as part of industrial piping, pneumatic, automation or process-control systems depending on the exact model and site requirement.

• Input 4 to 20 mA
• Output 3 to 15 psi

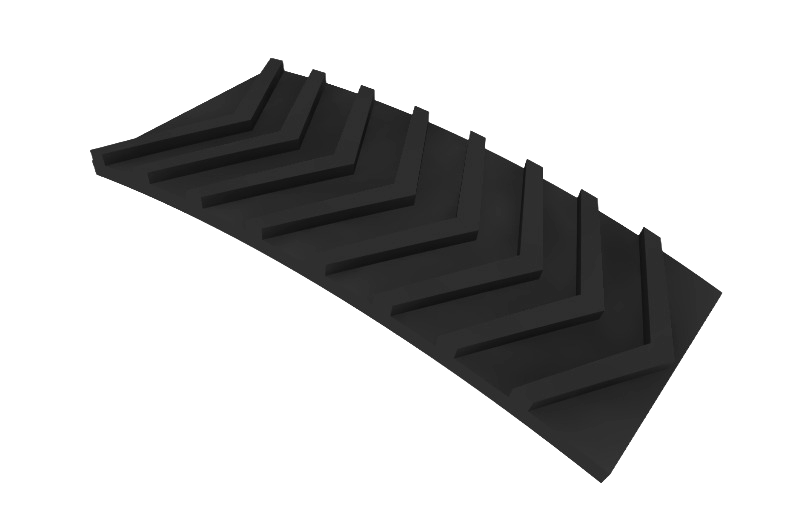

Chevron Conveyor Belt / Cleated Conveyor Belt

Chevron conveyor belts are designed for moving materials on inclined conveyor systems where a normal flat belt may allow the material to slip backward. The raised chevron pattern on the belt surface gives extra grip and helps carry bulk materials smoothly at an angle. This type of belt is commonly used in industries such as agriculture, construction, mining, recycling, cement plants, food processing, and material handling. It is suitable for transporting items like sand, gravel, grain, coal, soil, fertilizer, wood chips, and other loose or packed materials. The belt is made with strong rubber material and reinforced inner layers to provide good tensile strength, flexibility, and long service life. The black rubber surface helps resist wear during continuous operation, while the cleats improve material stability during transport. Chevron belts are especially useful where space is limited and the conveyor needs to move materials upward without needing a long horizontal system. They help improve efficiency, reduce spillage, and support smooth operation in heavy-duty working environments.

• Product Type: Chevron Conveyor Belt / Cleated Conveyor Belt
• Material: Heavy-duty rubber
• Color: Black
• Pattern: Raised chevron / V-cleat pattern

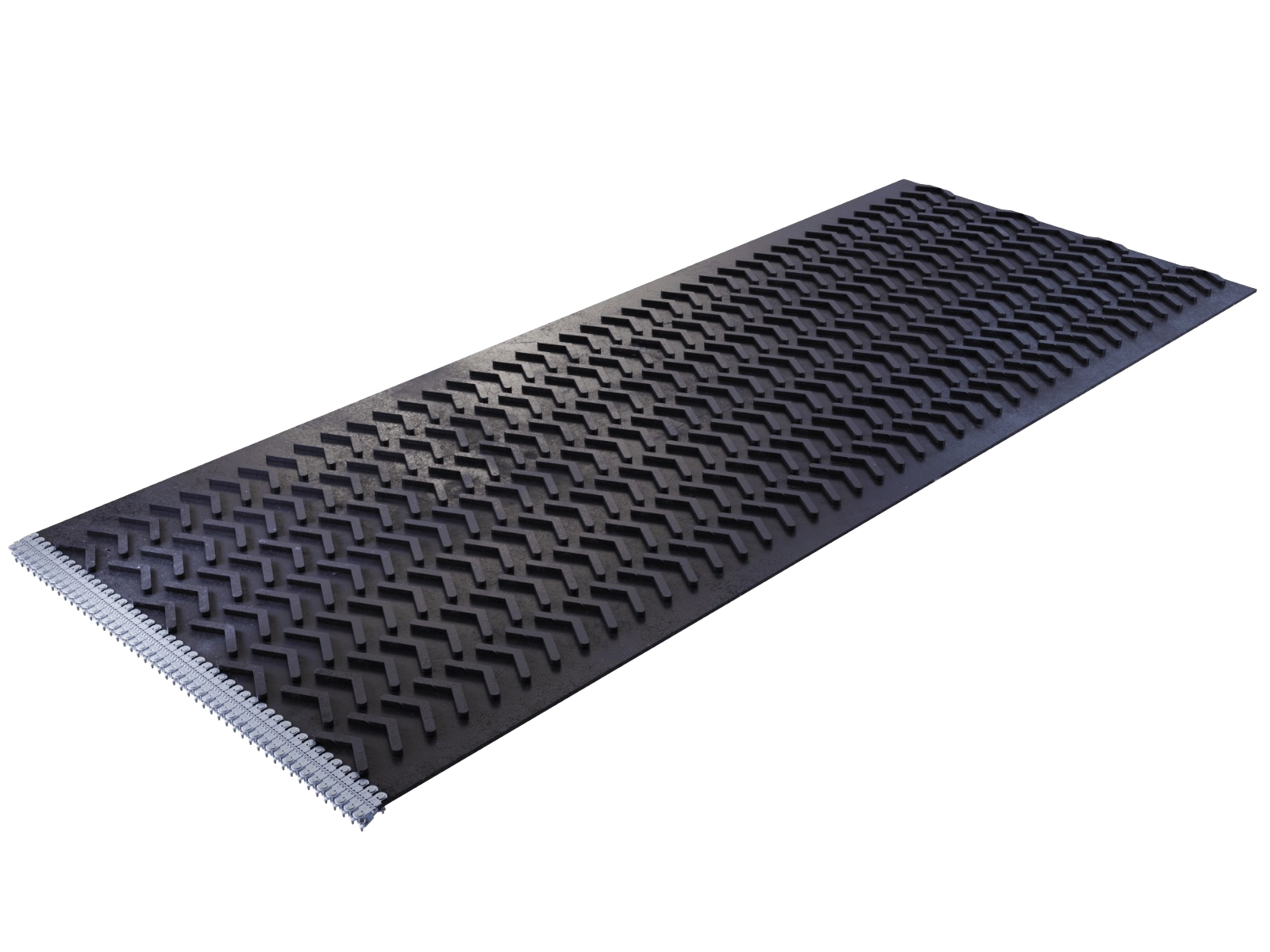

Rough Top Conveyor Belt / Patterned Grip Conveyor Belt

Rough top conveyor belts are designed with a raised patterned surface to provide extra grip during material handling. The textured top layer helps prevent products from slipping, sliding, or rolling backward while moving on flat or inclined conveyor systems. This type of belt is commonly used in packaging lines, loading and unloading systems, warehouse conveyors, logistics centers, food processing plants, textile industries, and general material handling applications. It is suitable for carrying boxes, cartons, bags, packed goods, lightweight materials, and products that need stable movement during transport. The belt is made from strong rubber material with a patterned top surface and reinforced inner fabric layers. This gives the belt good flexibility, durability, and resistance against wear during continuous operation. The rough pattern improves contact between the belt and the product, making it useful where smooth belts do not provide enough holding grip. Rough top conveyor belts are especially useful in inclined conveyors where products must be transported upward without slipping. They help improve conveyor efficiency, reduce product damage, and support smoother movement in industrial and commercial handling environments.

• Product Type: Rough Top Conveyor Belt / Patterned Conveyor Belt
• Material: Heavy-duty rubber with reinforced fabric layers
• Color: Black
• Surface Pattern: Raised rough grip pattern

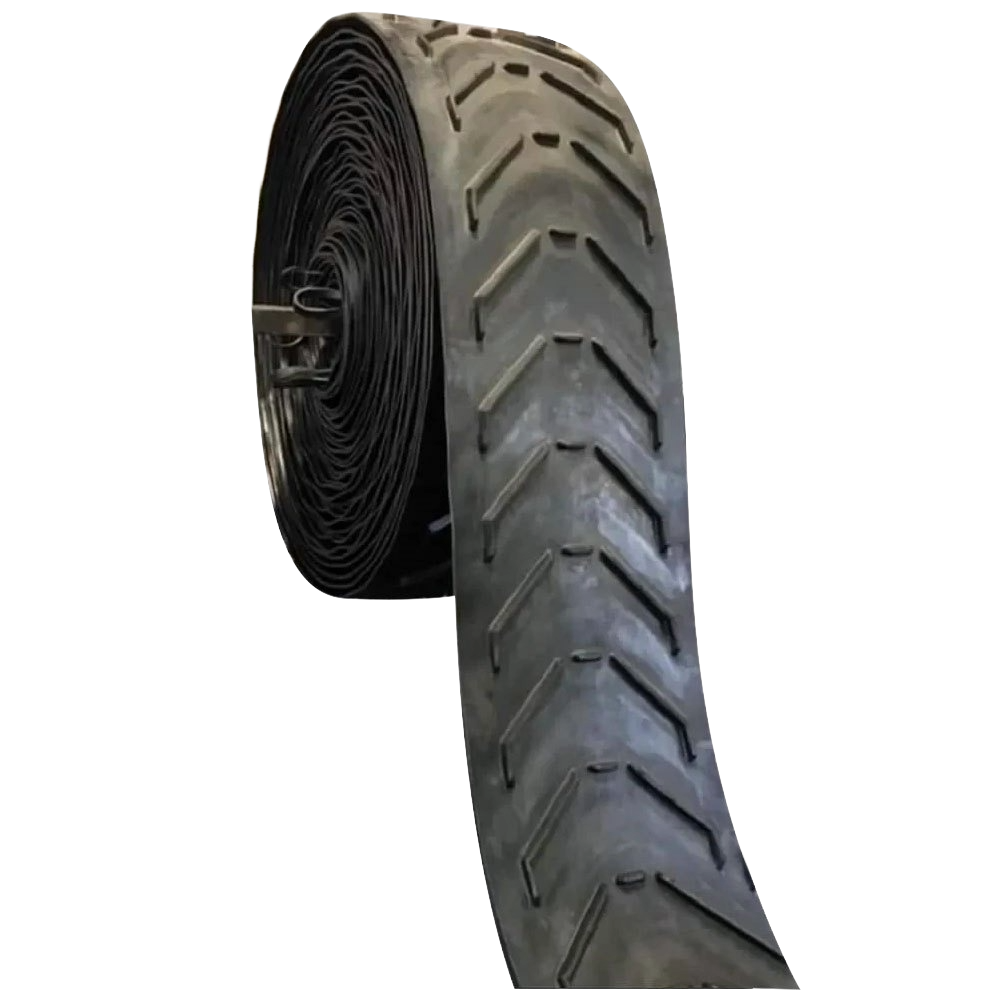

Chevron Conveyor Belt Roll / V-Pattern Conveyor Belt

Chevron conveyor belt rolls are designed for transporting bulk materials on inclined conveyor systems. The V-shaped raised pattern on the belt surface gives strong grip and helps stop materials from sliding backward during movement. This belt is commonly used in industries such as mining, agriculture, construction, cement plants, recycling plants, and material handling systems. It is suitable for carrying sand, gravel, coal, grain, soil, fertilizer, stones, and other loose bulk materials. The belt is made from durable rubber with reinforced inner layers to handle continuous operation and heavy-duty use. The raised chevron cleats improve traction while the flexible belt body allows smooth movement around conveyor pulleys. Chevron conveyor belts are useful where a normal flat conveyor belt cannot provide enough grip, especially on steep or inclined conveyors. They help reduce material spillage, improve conveying efficiency, and support stable transport in industrial environments.

• Product Type: Chevron Conveyor Belt Roll / V-Pattern Conveyor Belt
• Material: Heavy-duty rubber
• Color: Black
• Surface Pattern: Raised V-shaped chevron pattern

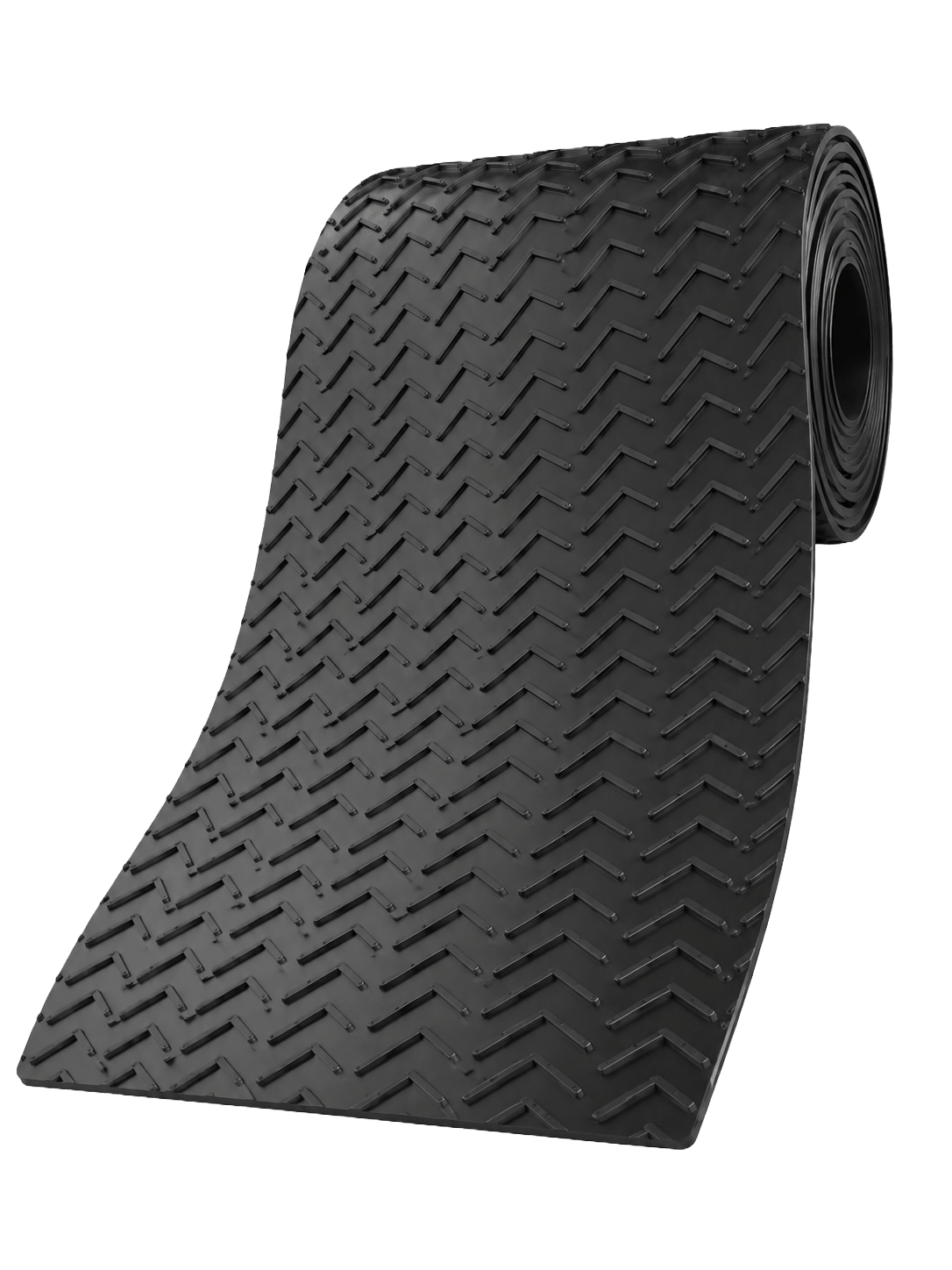

Chevron Conveyor Belt

Chevron conveyor belts are used for moving bulk materials on inclined conveyor systems. The raised V-shaped pattern gives extra grip and helps prevent materials from sliding backward. This belt is suitable for transporting sand, gravel, coal, grain, fertilizer, cement materials, stones, and other loose materials. It is commonly used in mining, agriculture, construction, cement plants, recycling, and material handling industries.

• Material: Heavy-duty rubber
• Color: Black
• Pattern: Raised chevron / V-pattern
• Application: Inclined material conveying

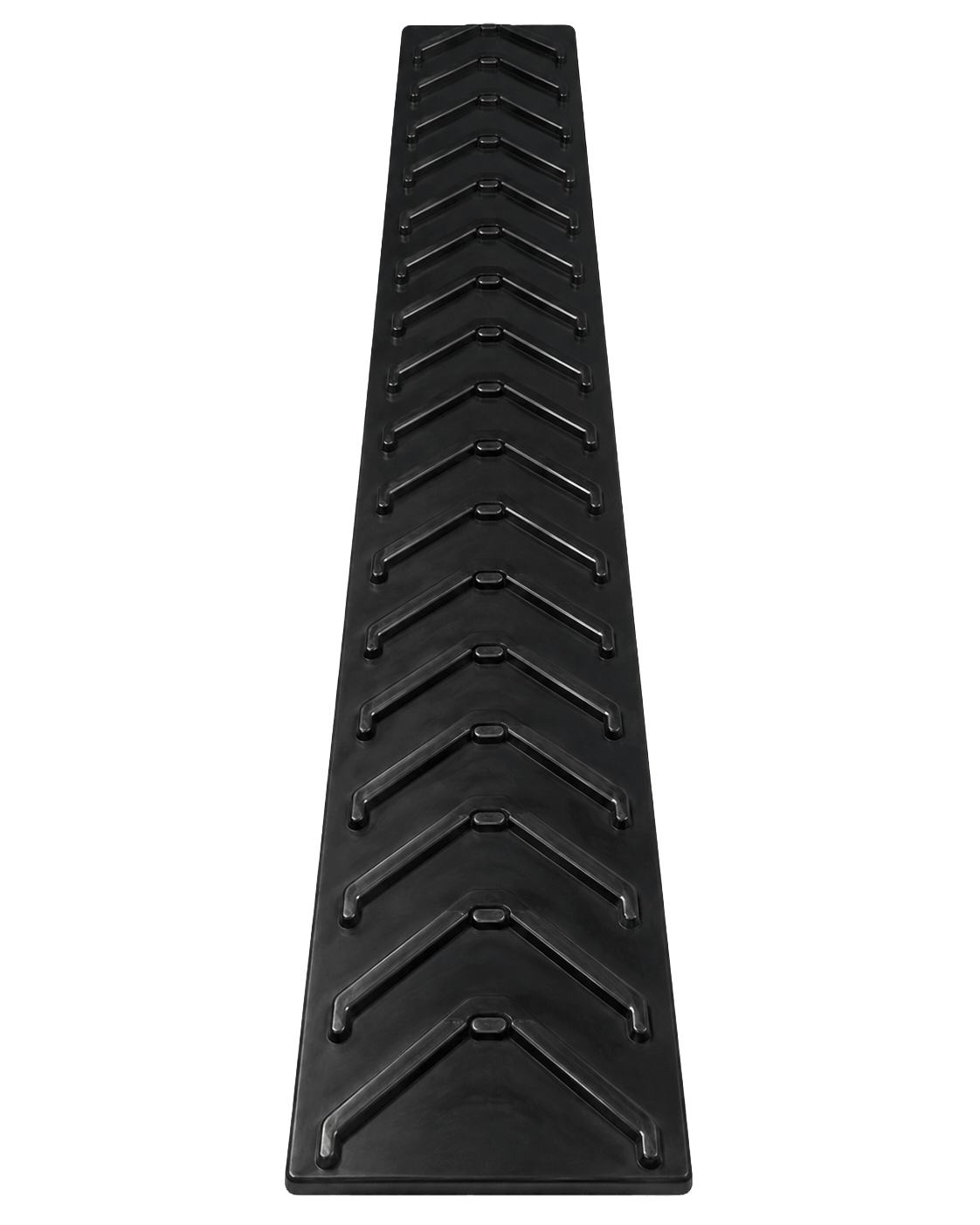

Chevron Conveyor Belt Strip

Chevron conveyor belt strips are used for inclined material conveying where extra grip is needed. The raised V-shaped pattern helps prevent materials from slipping or rolling backward during transport. This type of belt is suitable for moving loose materials such as sand, gravel, coal, grain, fertilizer, cement materials, and stones. It is commonly used in construction, agriculture, mining, cement plants, recycling, and general material handling.

• Material: Heavy-duty rubber
• Color: Black
• Pattern: Raised chevron / V-pattern
• Application: Inclined material conveying

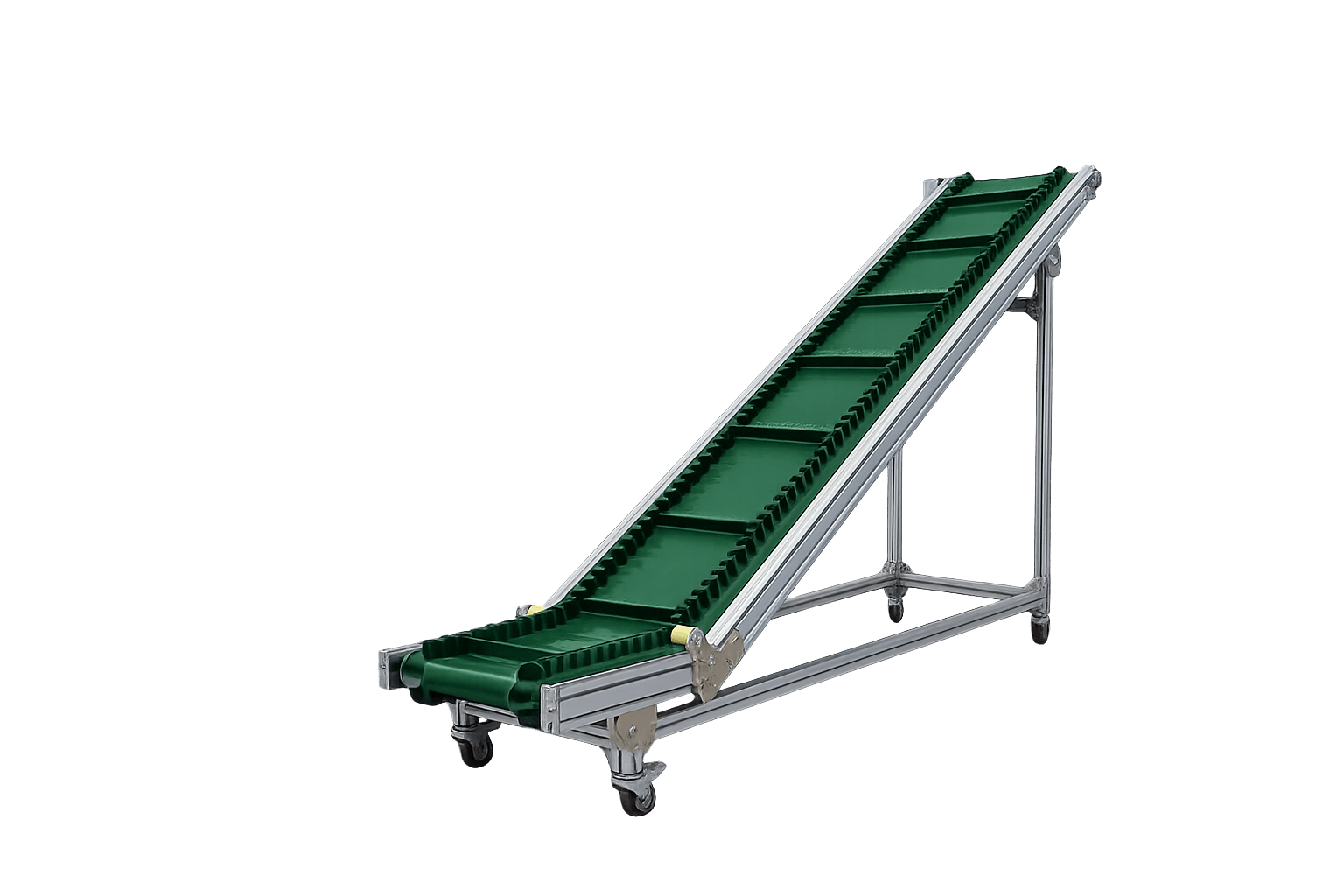

Inclined Cleated Conveyor

Inclined cleated conveyors are used to move products or materials from a lower level to a higher level. The raised cleats on the belt help hold items in place and prevent slipping during upward movement. This conveyor is suitable for packaging, food processing, manufacturing, warehouse handling, recycling, and general material transfer. The aluminum frame with wheels makes it easy to move and adjust according to the working area.

• Material: Aluminum frame with PVC/rubber belt
• Color: Green belt with silver frame
• Belt Type: Cleated conveyor belt
• Application: Inclined material conveying

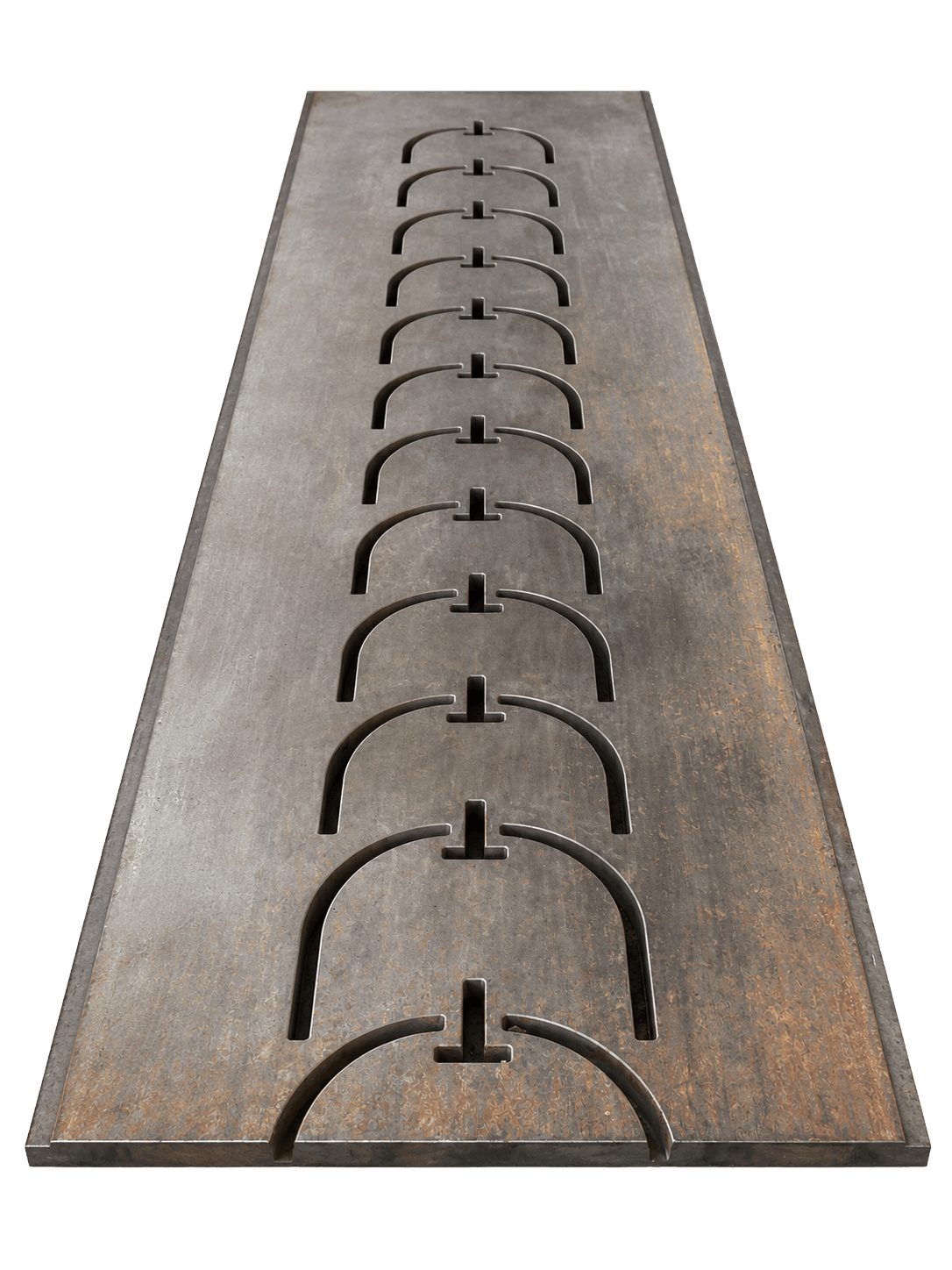

Conveyor Belt Cutting Die Plate

Conveyor belt cutting die plates are used for cutting and shaping belt patterns during conveyor belt manufacturing. The fixed cut-out design helps create repeated cleat or pattern shapes accurately on rubber belt materials. This type of die plate is suitable for conveyor belt production, rubber processing, industrial fabrication, and custom belt pattern manufacturing. It helps maintain consistent shape, spacing, and quality during repeated cutting work.

• Material: Heavy-duty steel plate
• Color: Metal finish
• Pattern: Repeated curved cut-out design
• Application: Conveyor belt pattern cutting
